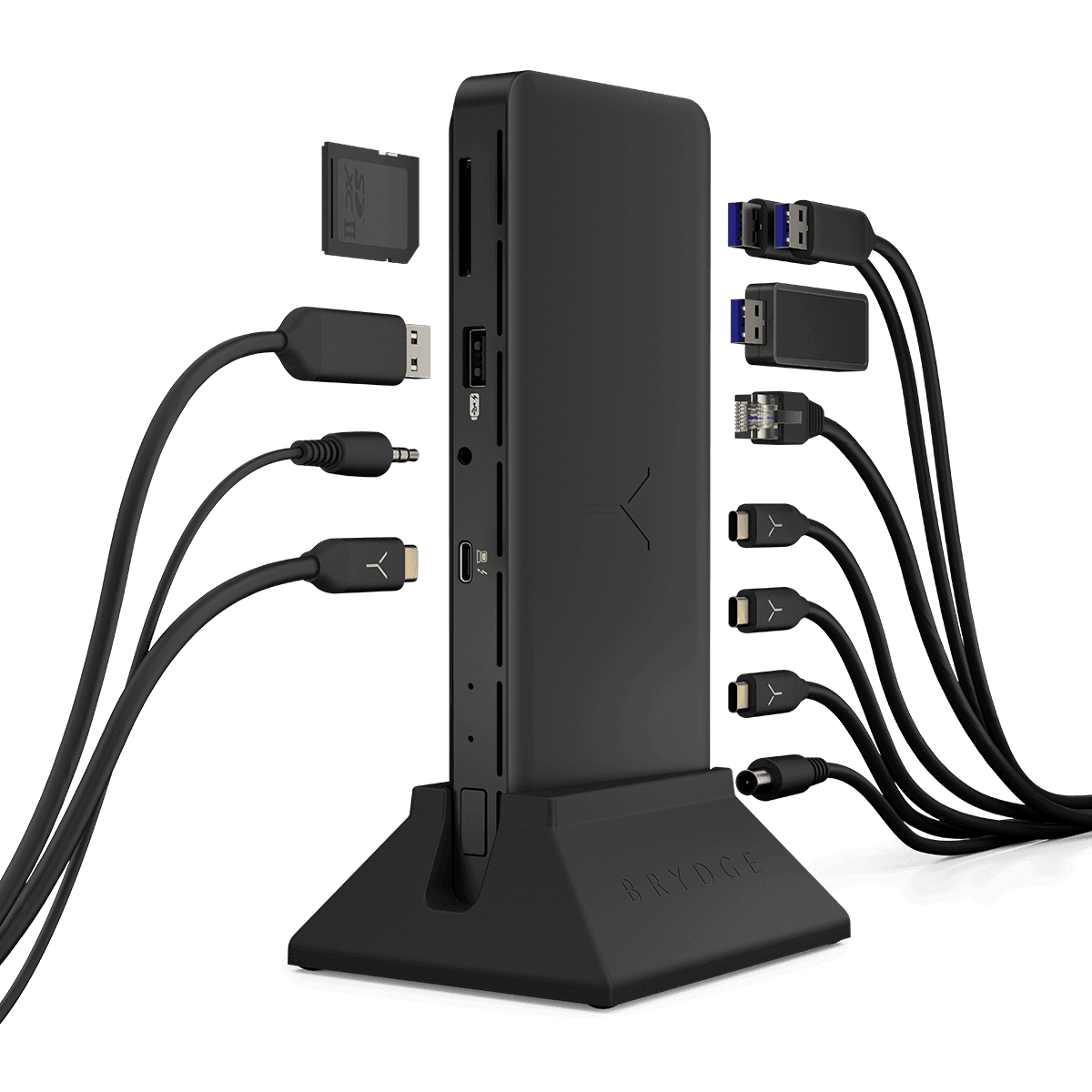

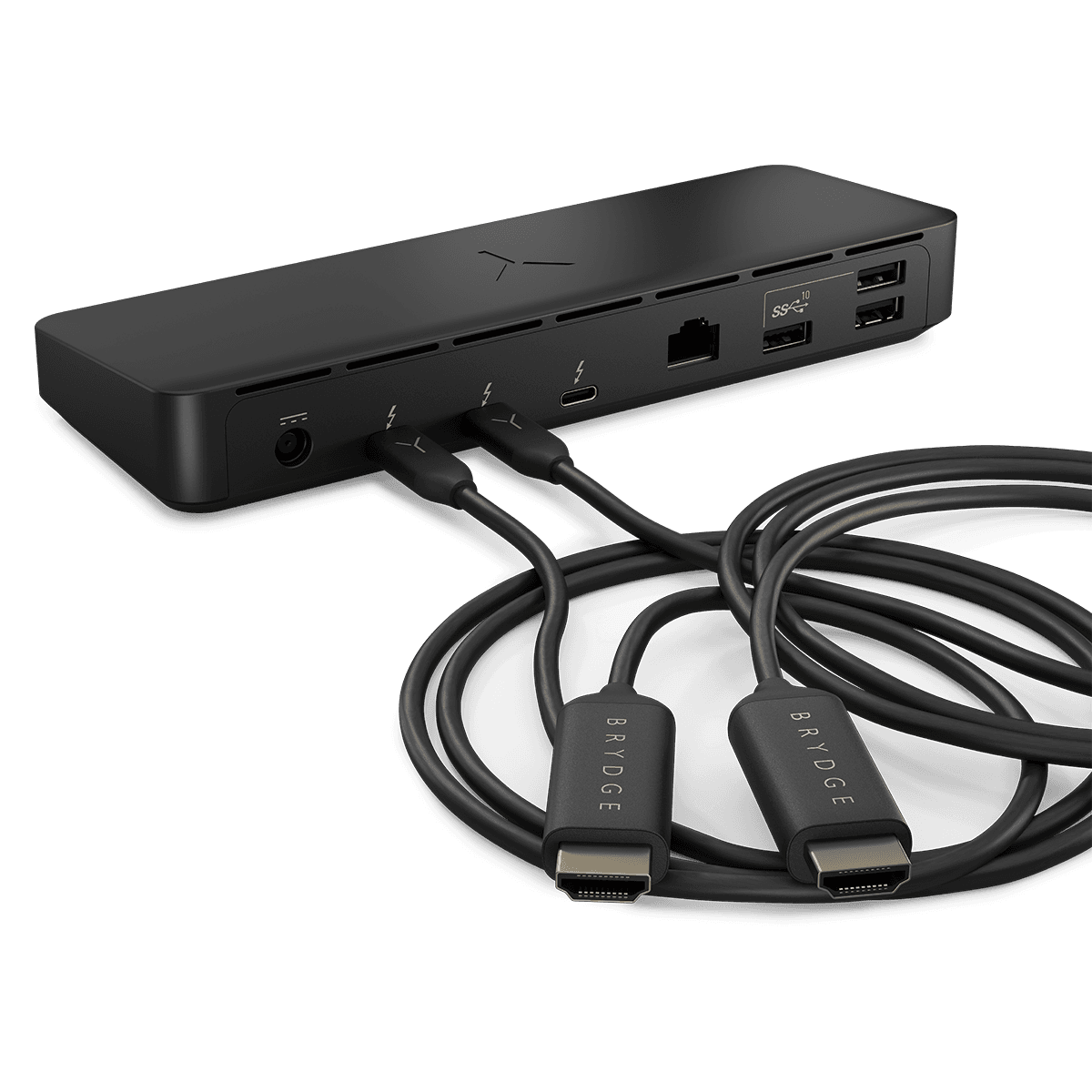

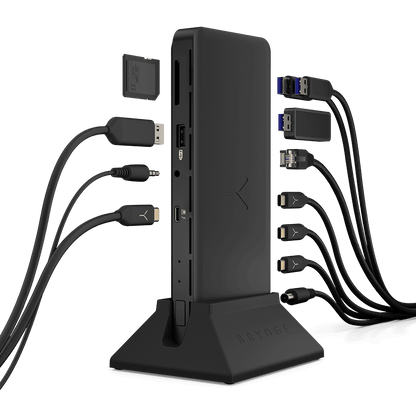

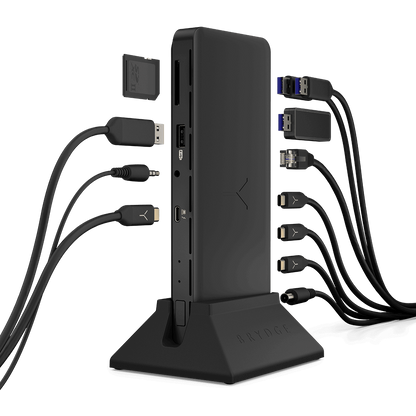

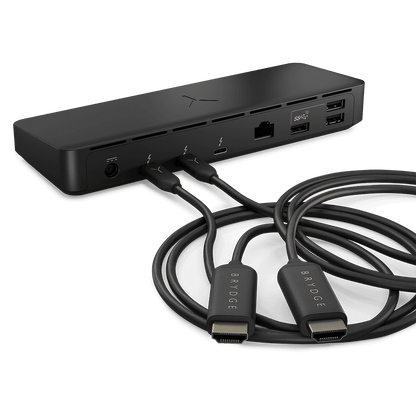

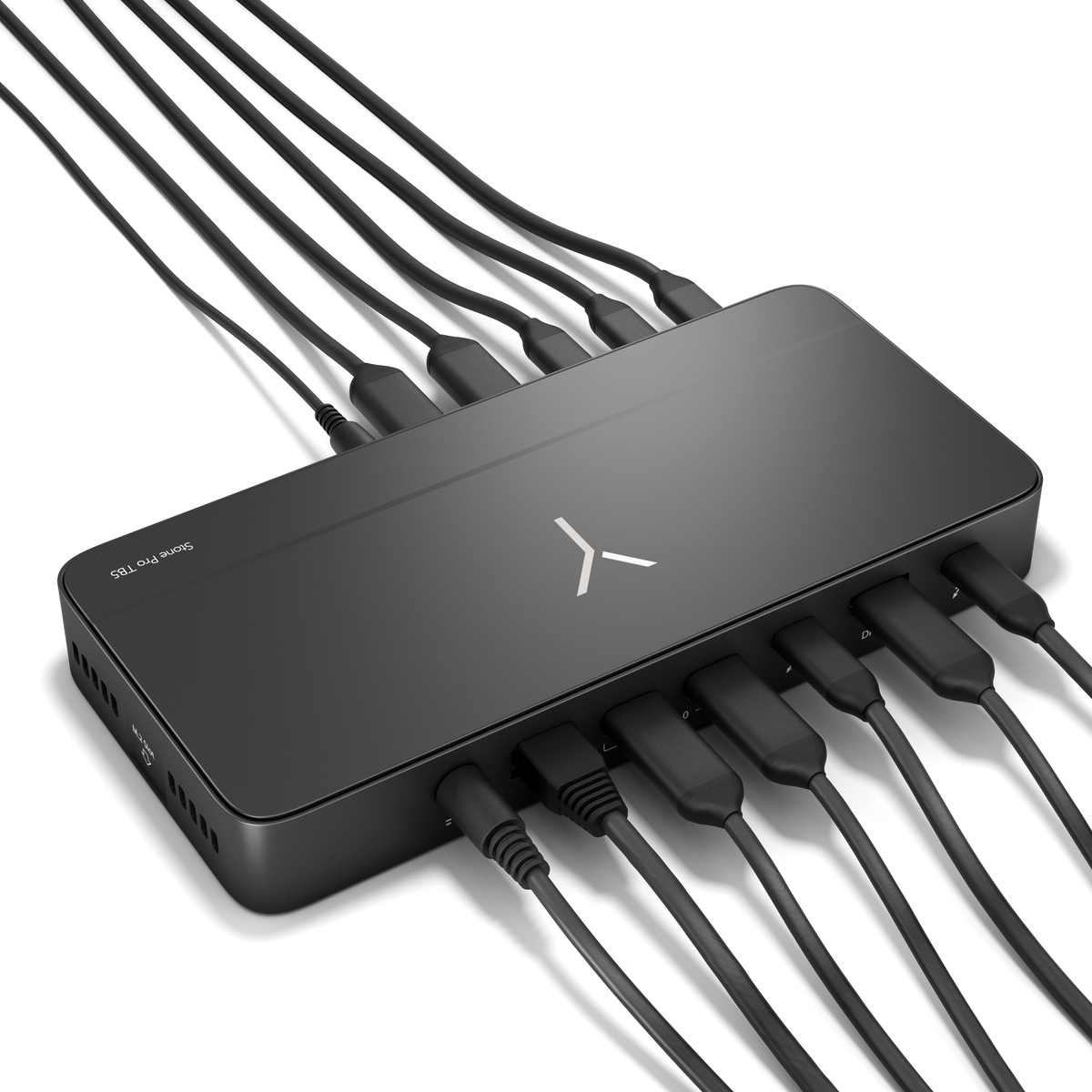

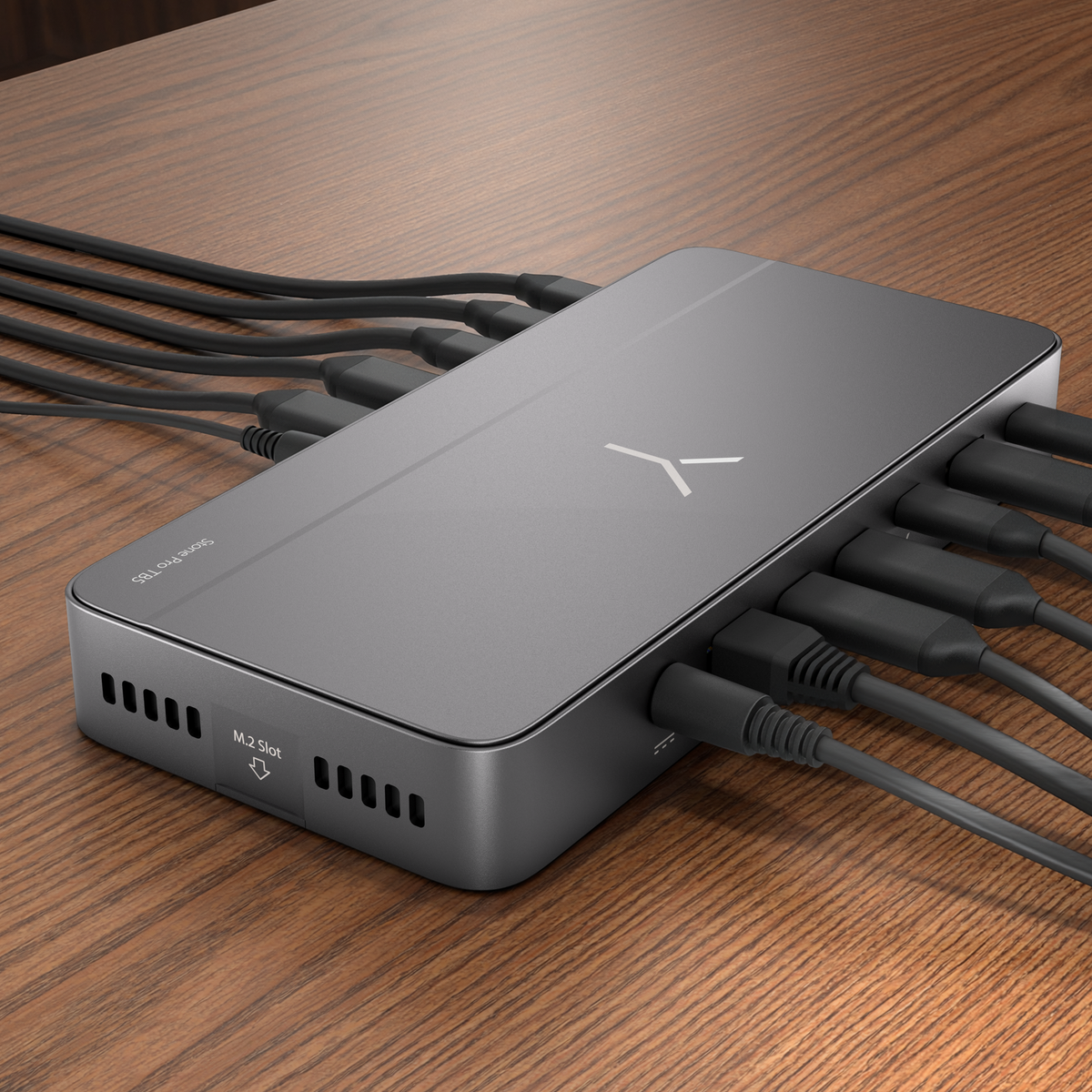

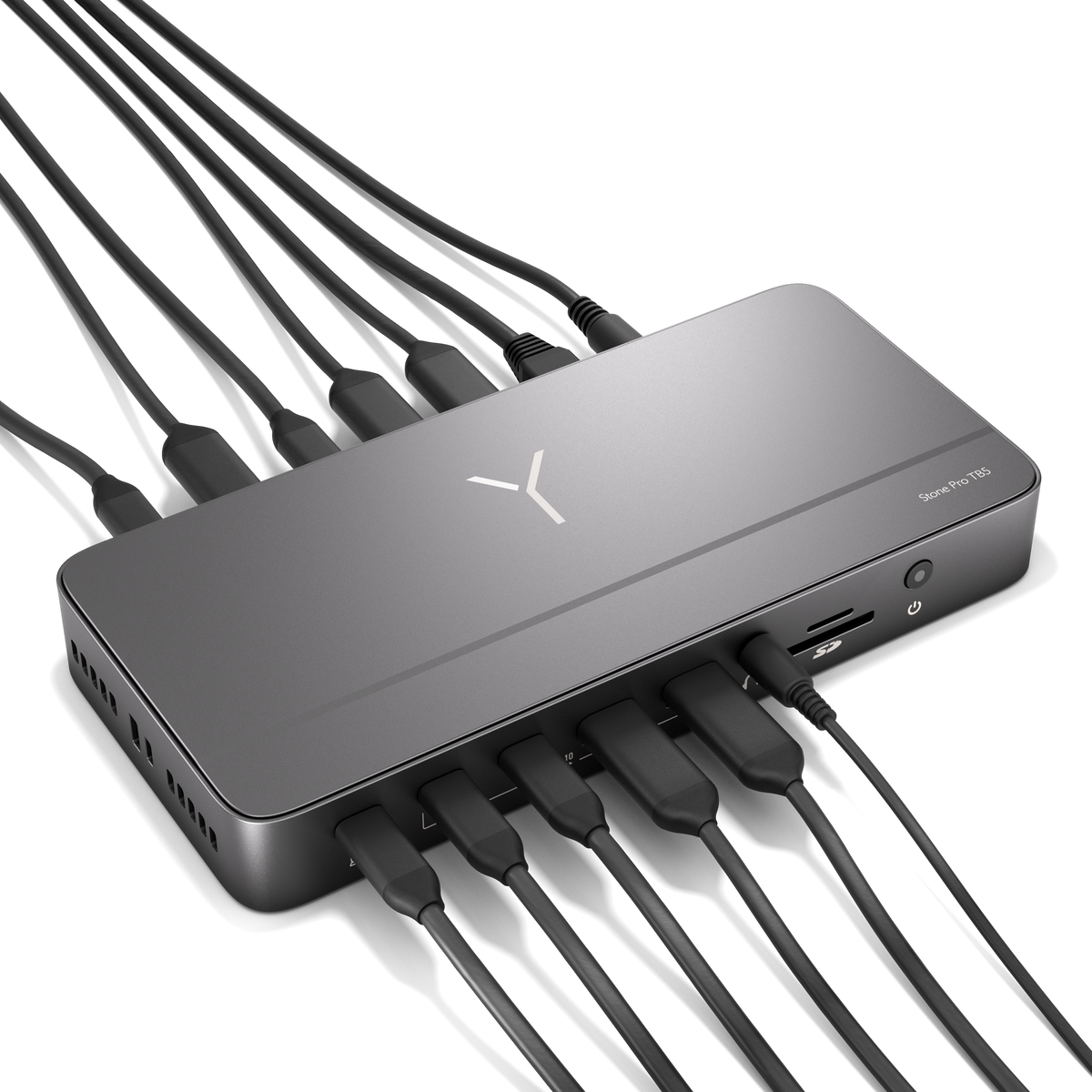

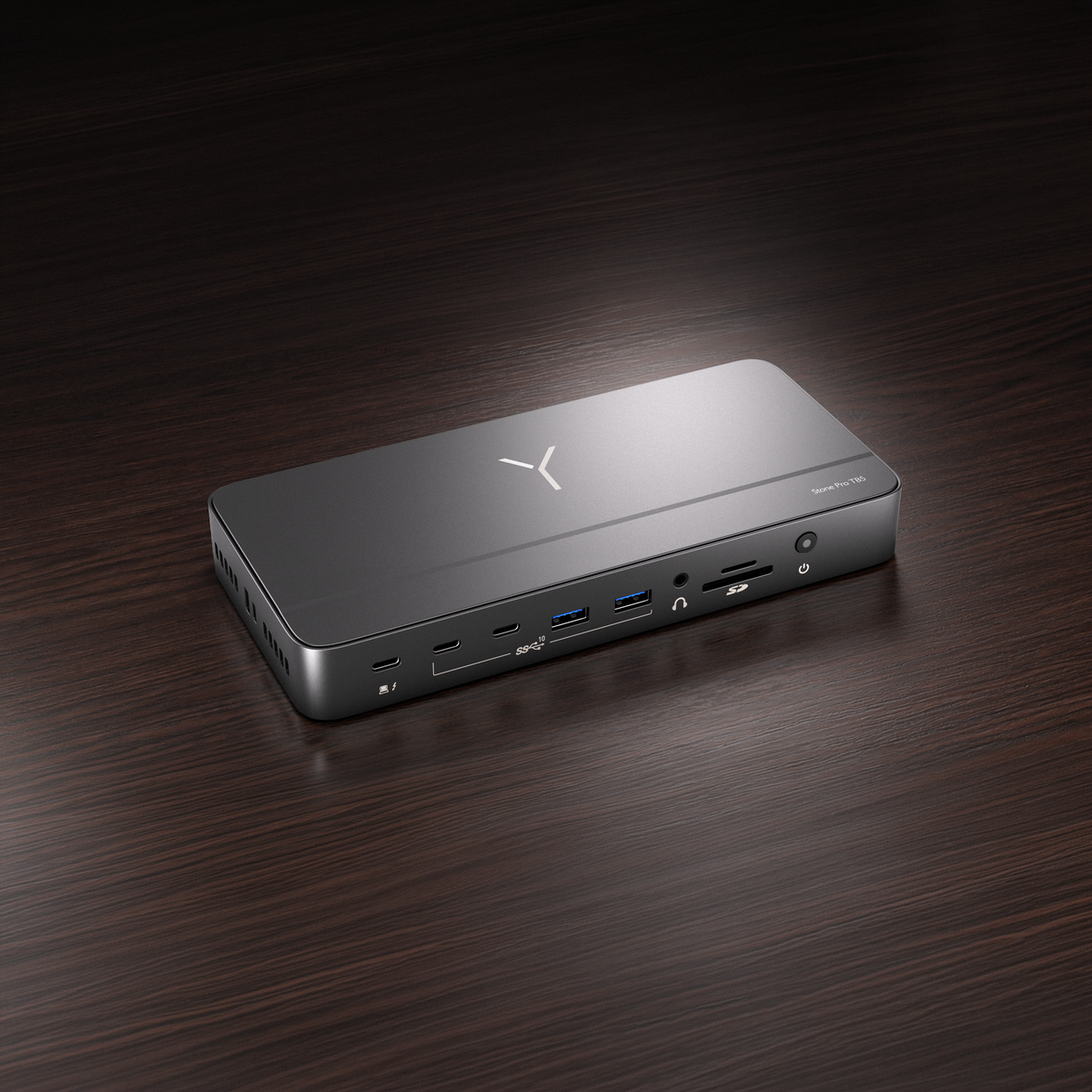

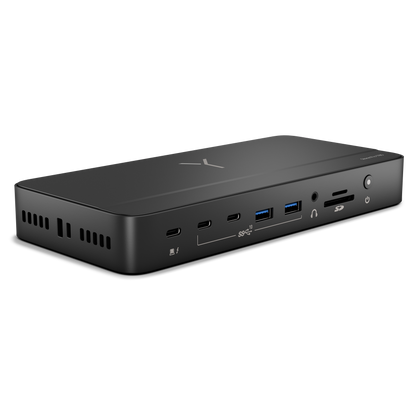

Brydge Stone Pro TB5 | Thunderbolt 5 Docking Station

Brydge Stone Pro TB5 | Thunderbolt 5 Docking Station

A blazing fast Thunderbolt 5™ Docking Station that drives three 4K monitors at 144Hz, or two 8K displays at 60Hz, charges your laptop at 140W PD and expand your storage options with a integrated M.2 SSD Slot. One dock, every connection.

Compatible with macOS and Windows

$349
$230 $349

In-stock

Colors: Black
View full details

Free Shipping
US & Cad $150
Intl $400

Free Shipping
US & Cad $150 / Intl $400

30-day returns

1-year warranty

Why Brydge Stone Pro TB5 | Thunderbolt 5 Docking Station

Triple 4K display capability

Triple 4K display capability

Three 4K monitors at 144Hz, or two 8K displays at 60Hz.

Thunderbolt™ 5 speeds

Thunderbolt™ 5 speeds

80Gbps of bandwidth, boosting to 120Gbps when your display demands it.

Up to 140 watts of power

Up to 140 watts of power

Full-speed charging for performance laptops, even under sustained load.

Built-in storage expansion

Built-in storage expansion

An internal M.2 slot takes a Gen4 NVMe SSD at up to 7,000 MB/s.

Active thermal management

Active thermal management

Cooling that holds performance steady through long, high-load sessions.

Key features

Triple 4K display capability
Thunderbolt™ 5 speeds
Up to 140 watts of power
Built-in storage expansion
Active thermal management
14 ports for everything else

Three 4K displays at 144Hz, or two 8K displays at 60Hz, via DisplayPort 2.1 and Thunderbolt 5. High refresh and high resolution at once.

80Gbps of bandwidth, boosting to 120Gbps for displays that need it. Twice the Thunderbolt 4 ceiling, and backward compatible with the gear you already own.

140W keeps a performance laptop charging at full speed while it's working, not just while it's idle — with headroom left for everything else on the dock.

An internal M.2 slot takes an NVMe PCIe Gen4x4 SSD at up to 7,000 MB/s, actively cooled so sustained writes don't throttle. No extra enclosure, cable or power brick.

Hot docks slow down. Active cooling dissipates heat under high-bandwidth loads, so performance holds through a full working day.

2.5Gb ethernet, SD 4.0 at up to 2.4Gbps, four USB-A, two USB-C at 10Gbps and a 3.5mm audio/mic jack. Up to eight USB devices at once.

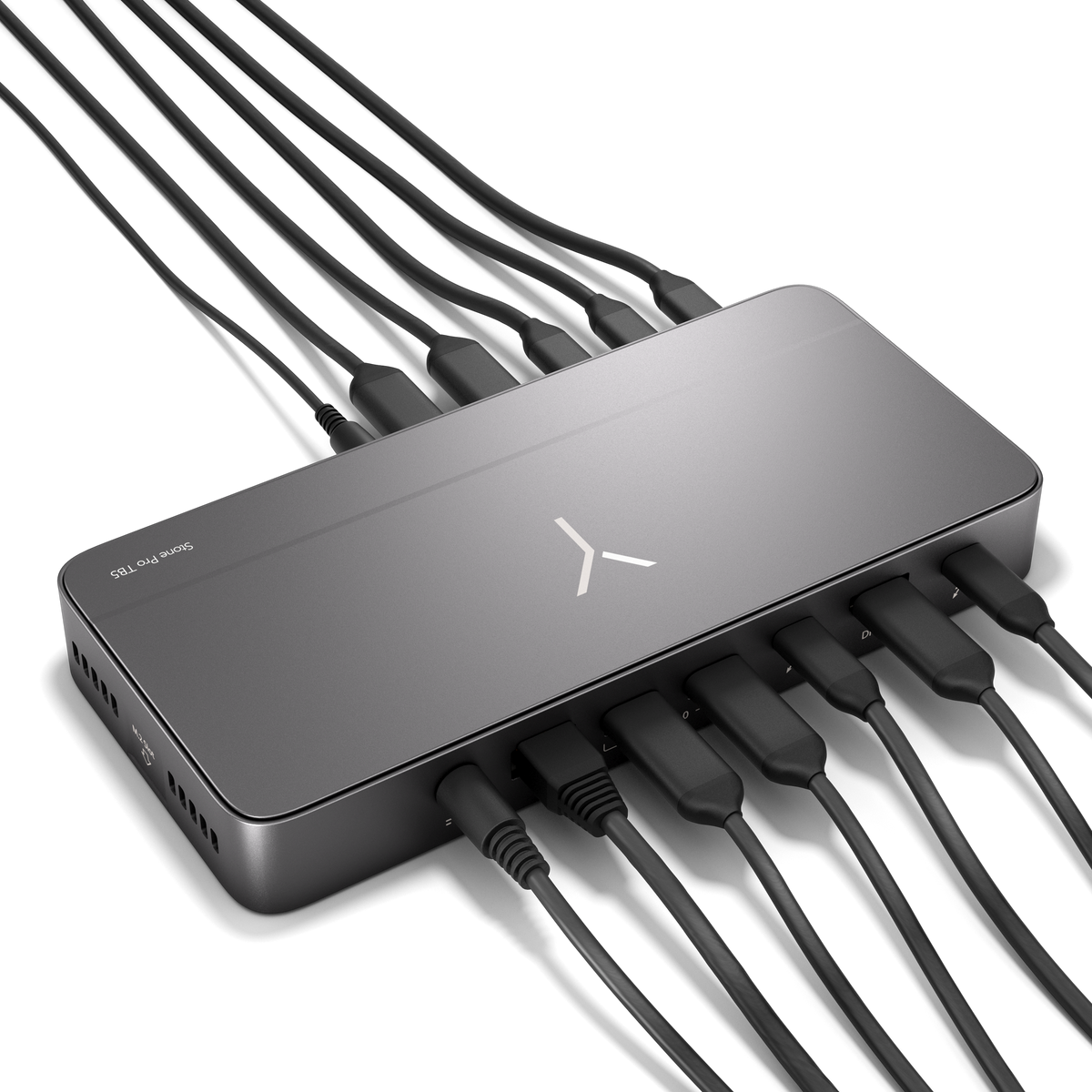

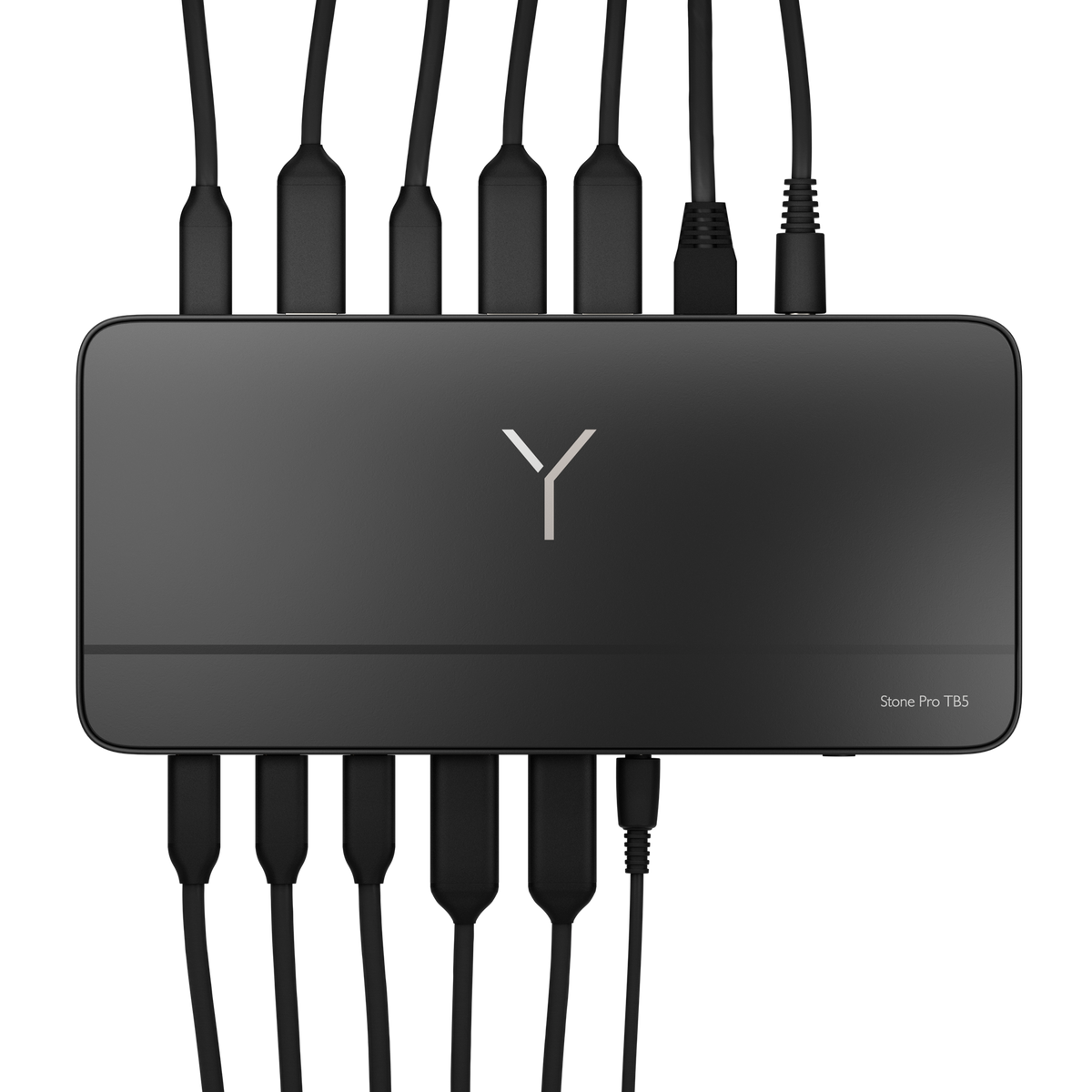

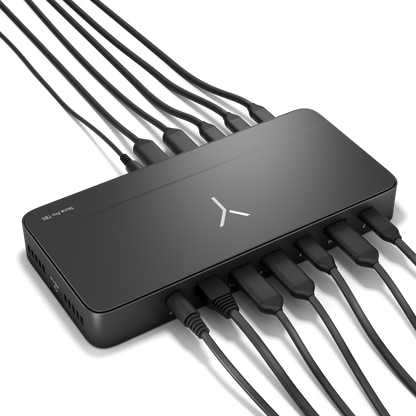

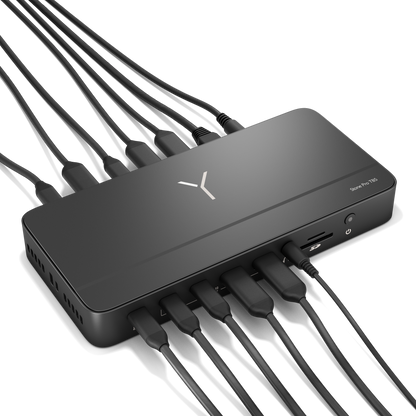

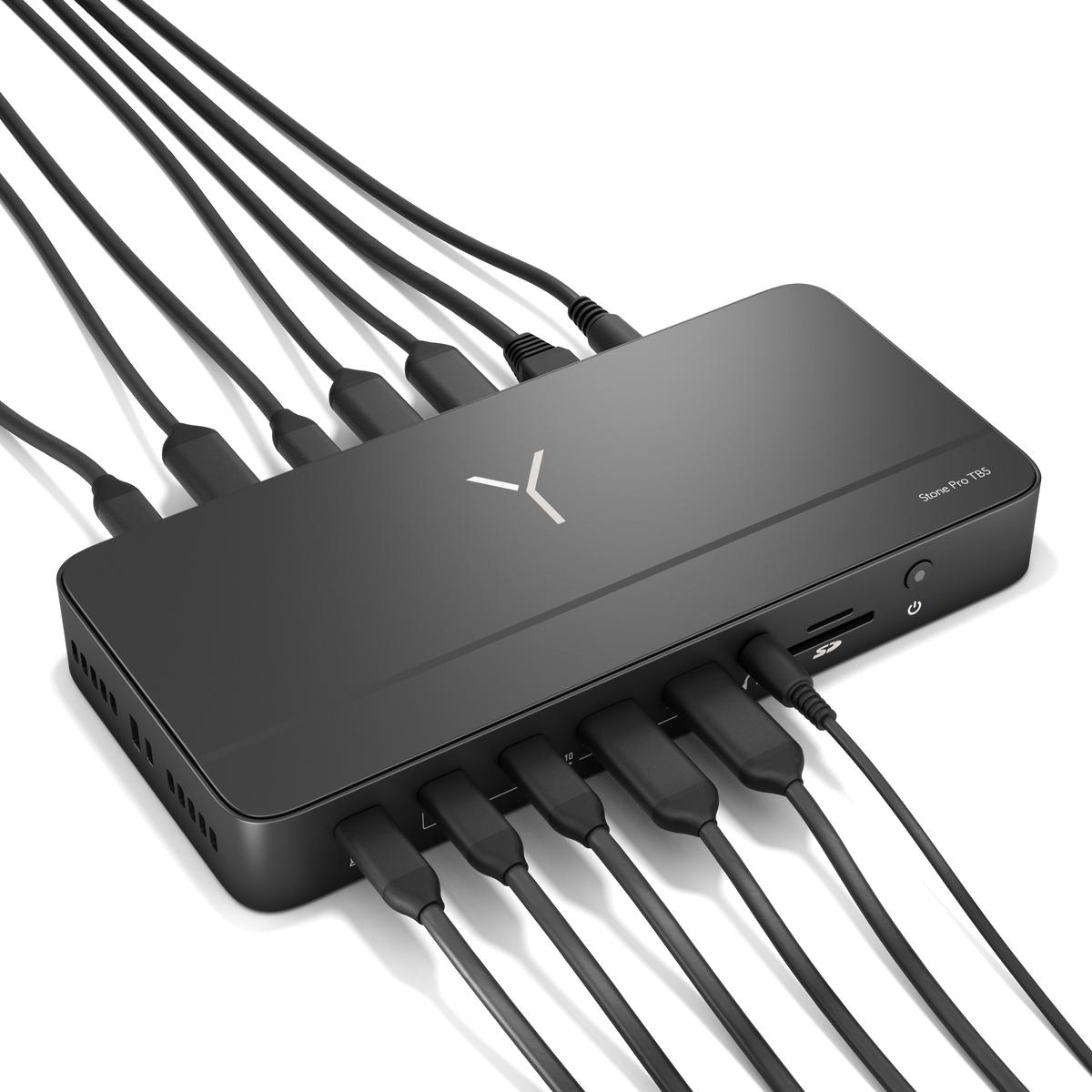

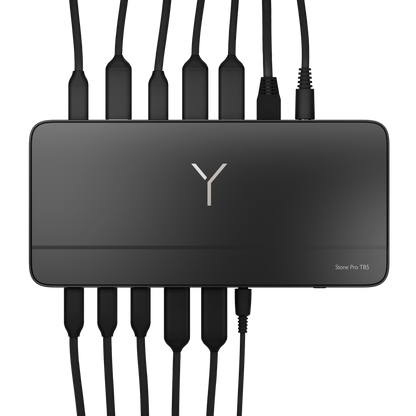

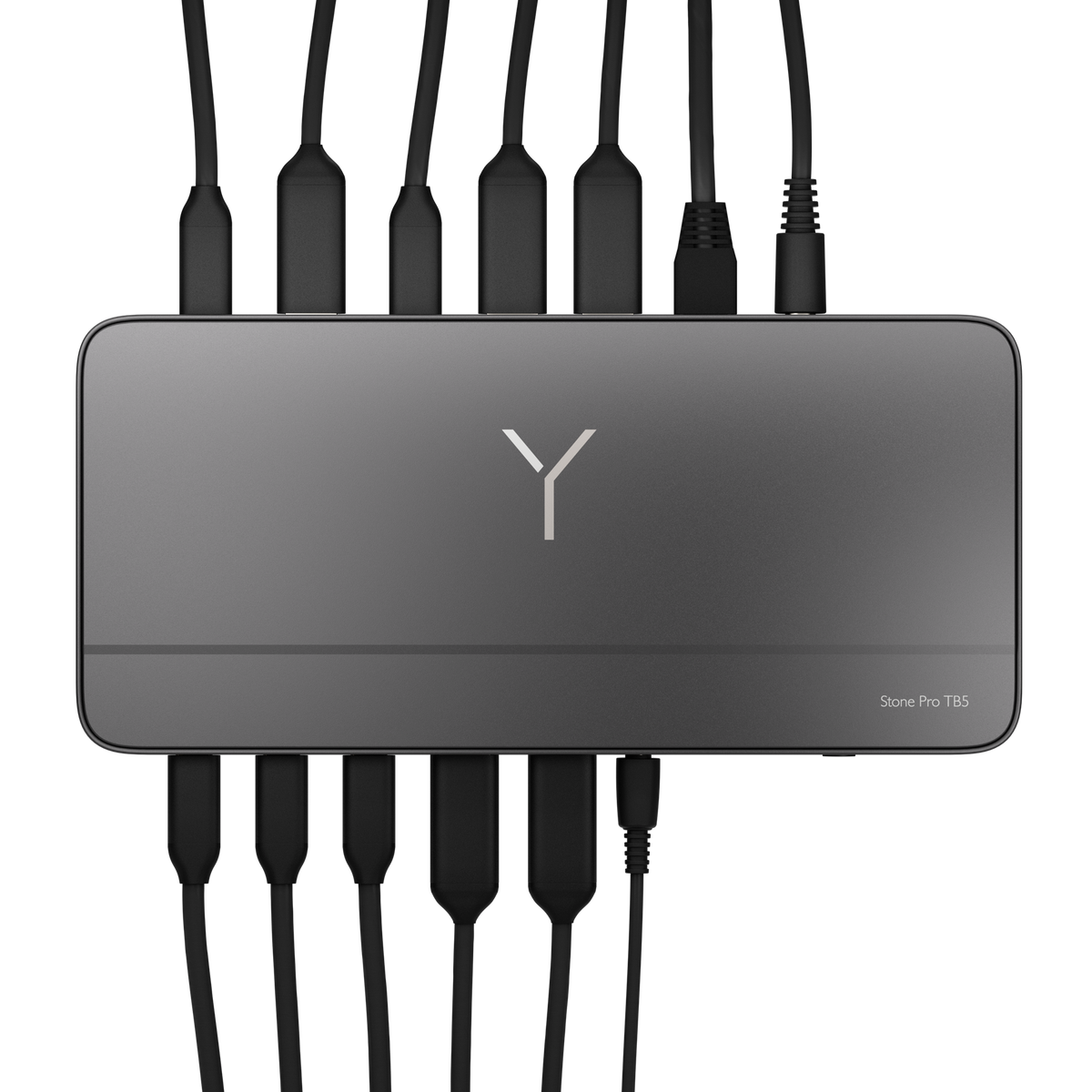

Plug In – Do More

14 ports, triple 4K displays, and 140W of power, all through a single Thunderbolt 5 connection.

Cool Under Load

Active cooling holds performance steady while everything runs at once.

Three Displays - Full Speed

DisplayPort 2.1 and dual Thunderbolt 5 drive three 4K screens at 144Hz, or two at 8K.

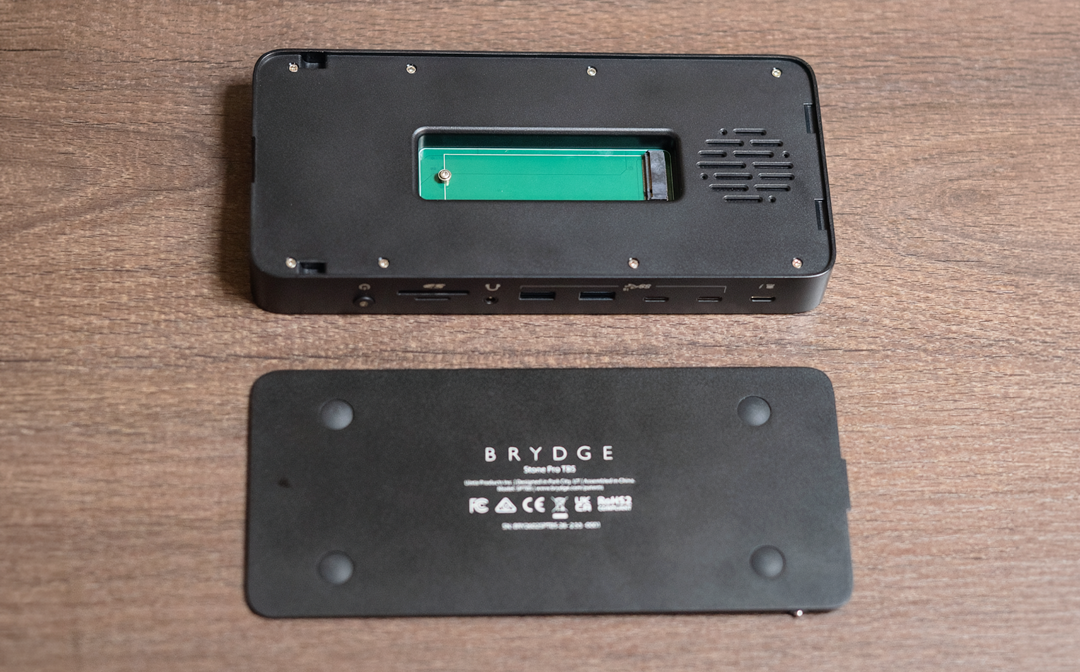

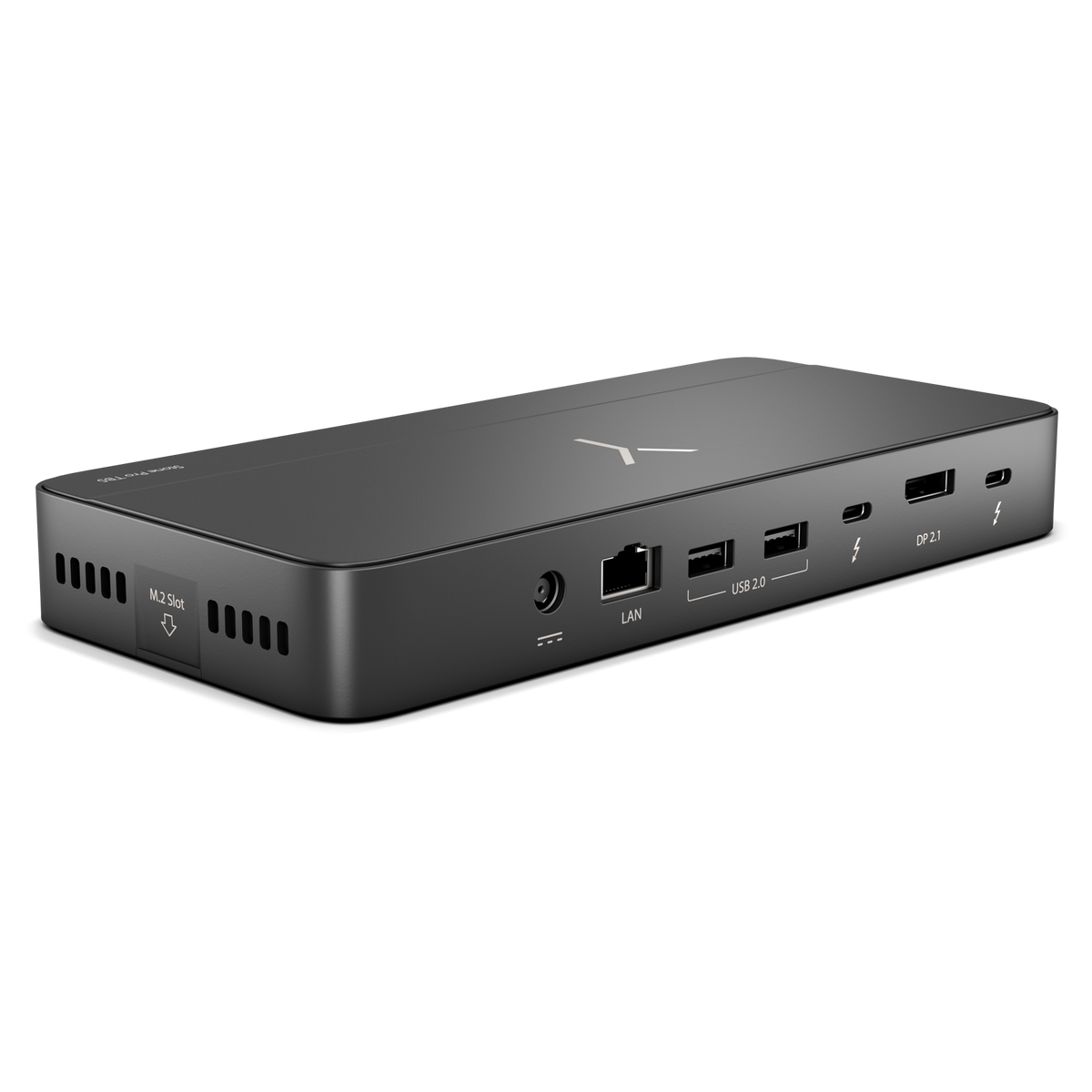

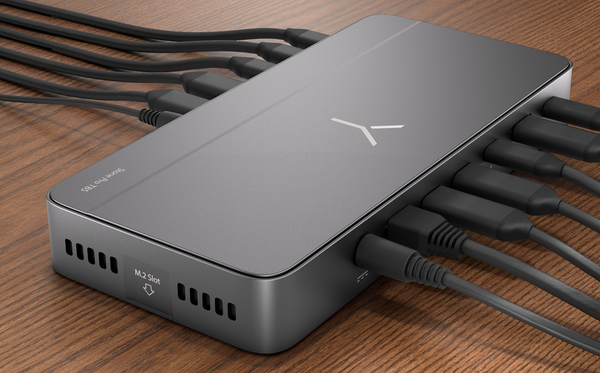

Storage on the Inside


Fast enough to edit off directly — a Gen4 NVMe drive at up to 7,000 MB/s, when
installed inside the dock (not supplied). It sits inside the enclosure, under
active cooling, so it holds those speeds instead of throttling ten minutes into
a transfer.

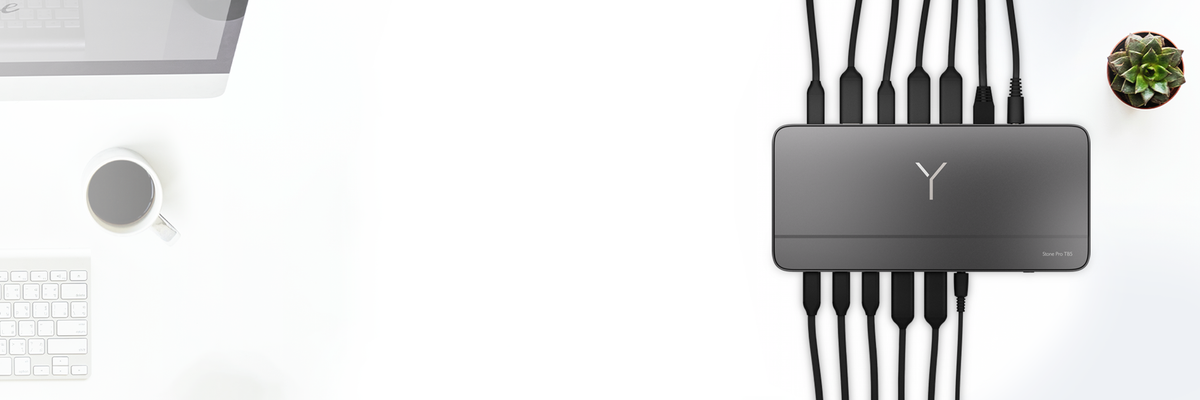

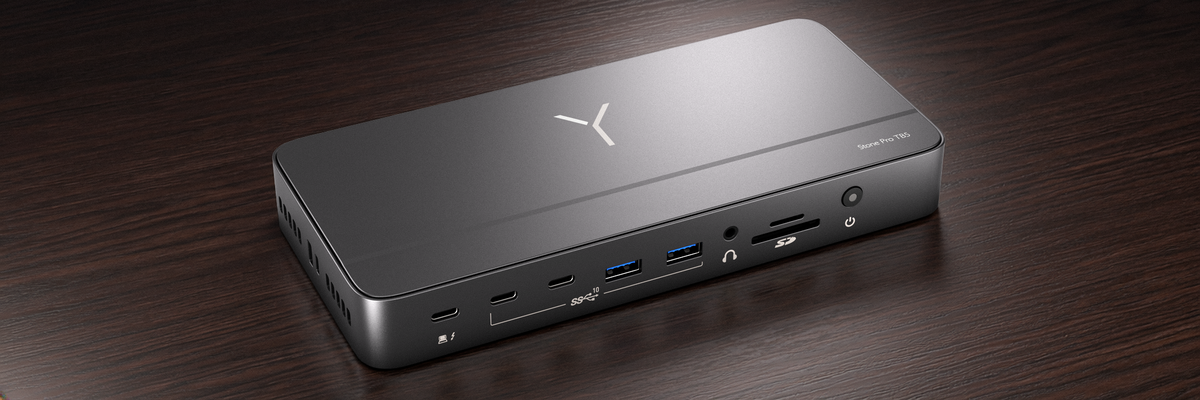

Ultimate Productivity

Go. Do more. With 14 ports, 80Gbps of Thunderbolt 5 bandwidth and 140 watts of
power, the Stone Pro TB5 turns a single cable into a complete workstation.



Display support
Displays4K @ 60Hz4K @ 120Hz4K @ 144Hz4K @ 240Hz8K @ 60Hz
1
2
3
* DSC-compatible monitor required.

Apple Studio Display and Pro Display XDR both support DSC. For other monitors, check the manufacturer's specifications.

MacBook Air and MacBook Pro models with a base M1 or M2 chip are limited by Apple to one external display, regardless of dock capability. Base M3 models support two with the lid closed; base M4 and later support two with the lid open. Pro, Max and Ultra chips are not affected.

TECH SPECIFICATIONS

Stone Pro TB5

Tech Specs

Compatibility

COMPUTERS

macOS and Windows. Thunderbolt 5 speeds require a Thunderbolt 5 host; backward compatible with Thunderbolt 4 and USB4.

MONITOR SUPPORT

Up to triple 4K @ 144Hz, or dual 8K @ 60Hz, via DisplayPort 2.1 and compatible USB-C display outputs.

Note: MacBook Air and MacBook Pro models with the base Apple M-series chip are limited by Apple to a single external display.

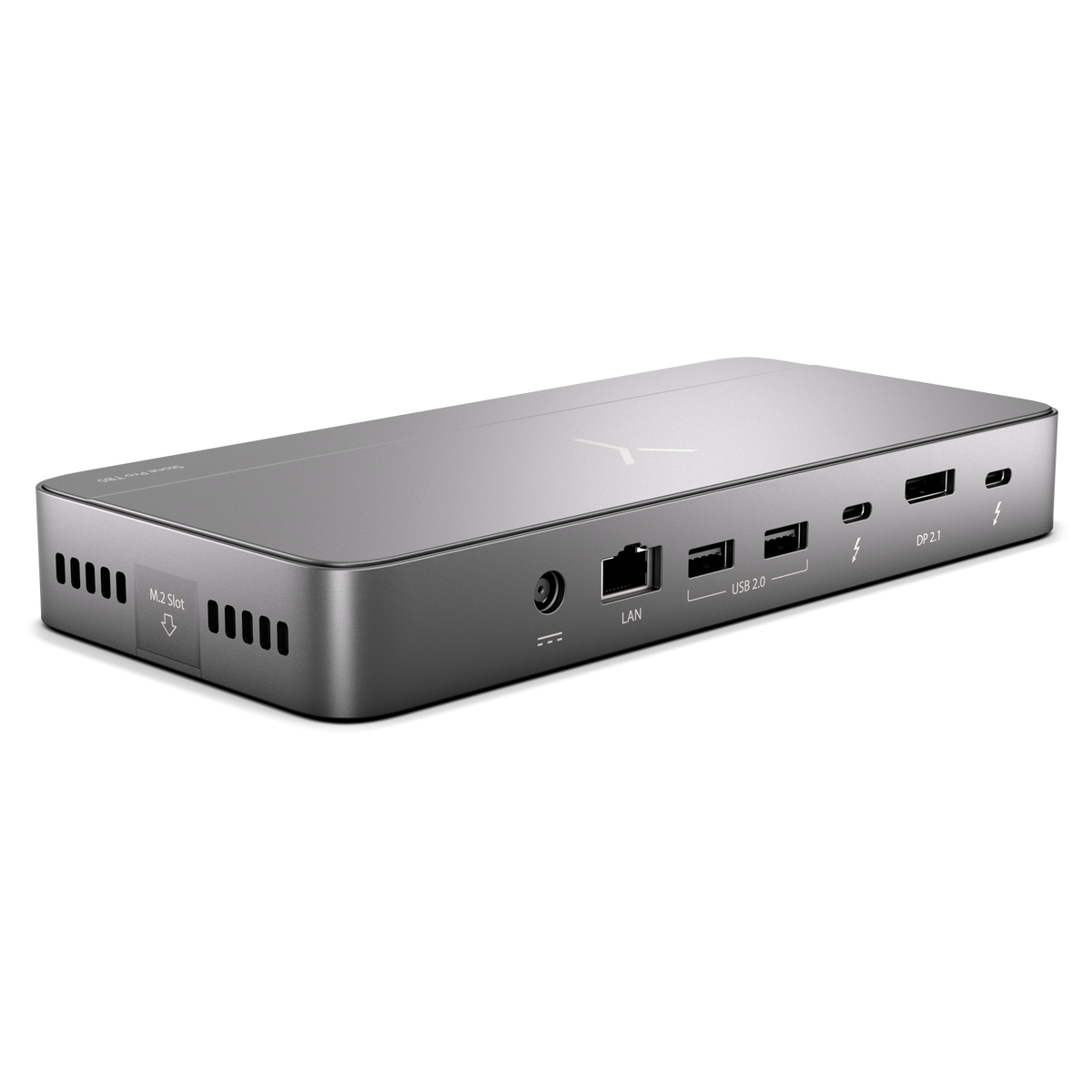

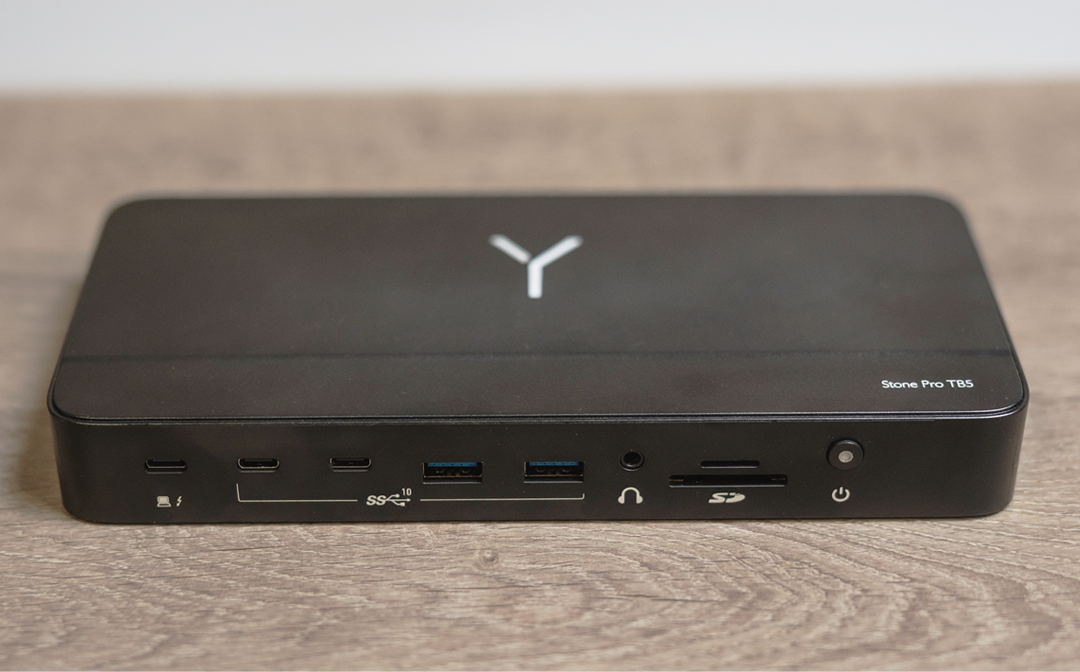

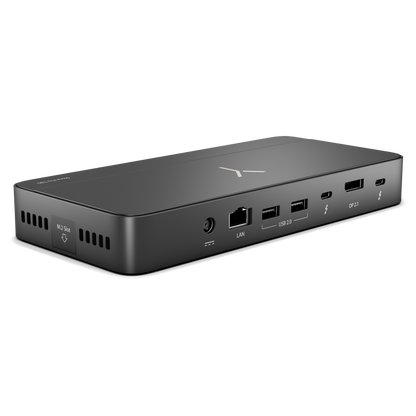

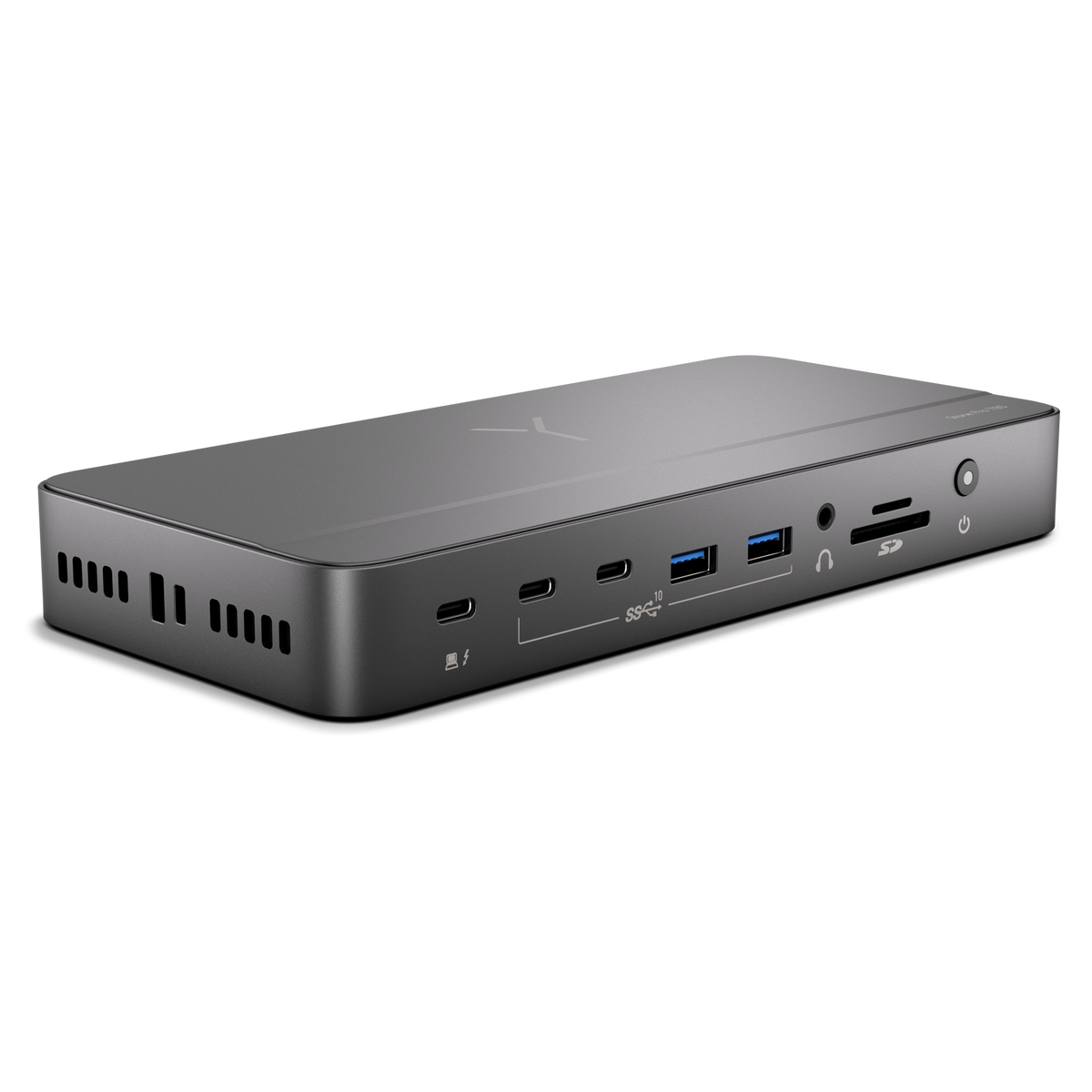

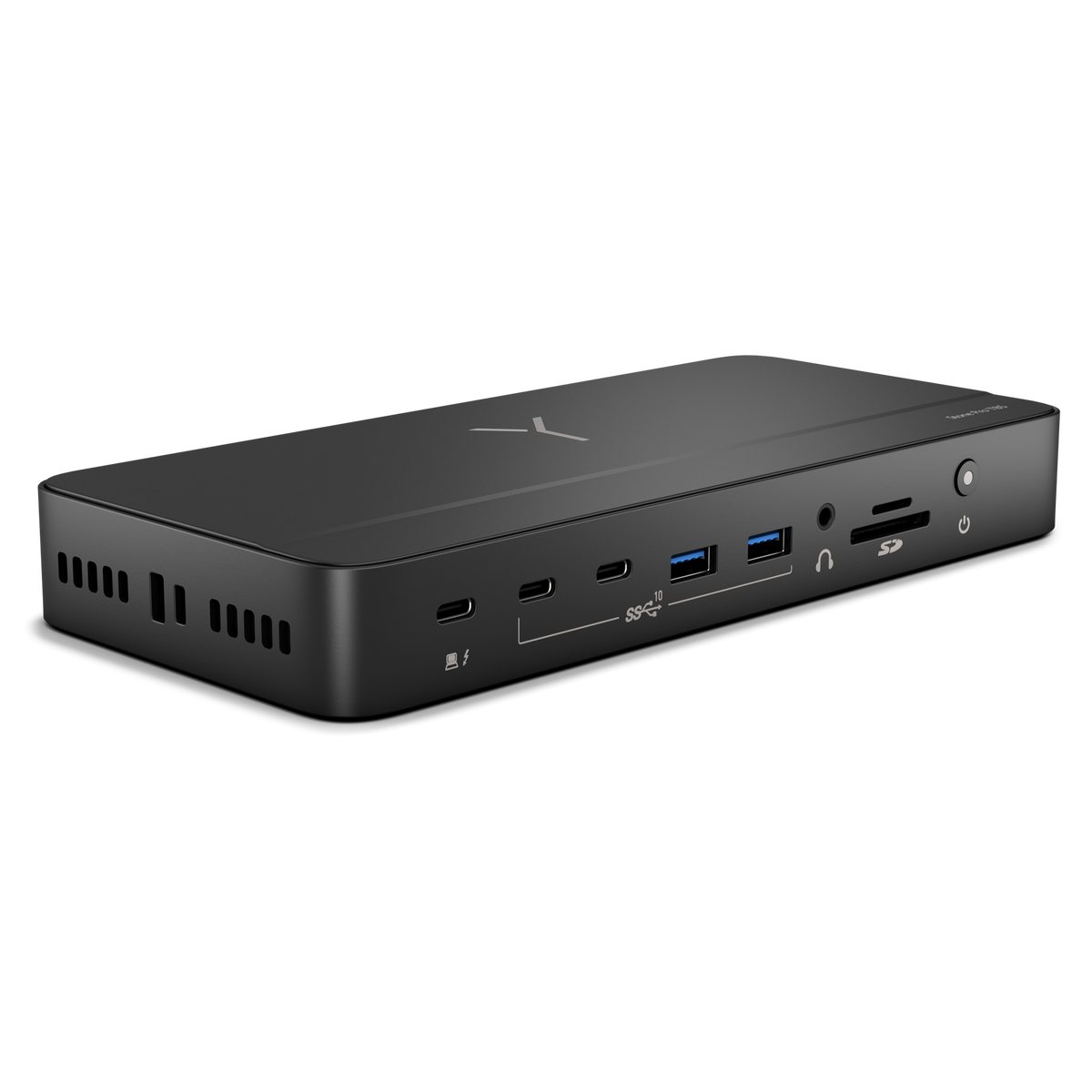

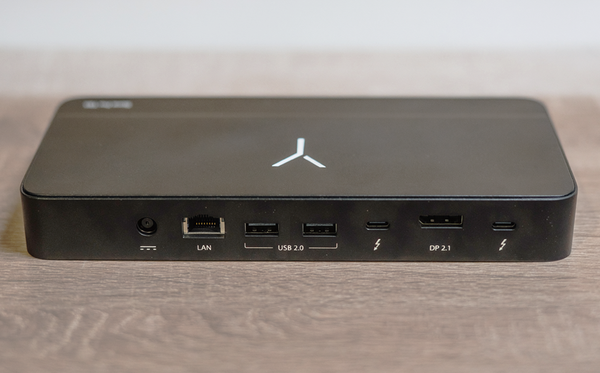

Ports & Controls — 14

Ports - 14

1 × Upstream Thunderbolt™ 5 (80Gbps, up to 120Gbps Bandwidth Boost) — up to 140W PD charging.

2 × Thunderbolt™ 5 (80Gbps, 15W PD), 2x 4@144Hz/8k@60Hz display DP 2.1 compatible.

 1 × DisplayPort 2.1 (up to 8K @ 60Hz, backward compatible with earlier DisplayPort versions)

1 × M.2 slot (NVMe PCIe Gen4x4, up to 7,000 MB/s, actively cooled)

1 × Ethernet (2.5Gbps, RJ45)

1 × SD card reader (SD 4.0, up to 2.4Gbps / 300 MB/s, backward compatible with SD 3.0 and SD 2.0)

2 × USB-C 3.1 Gen 1 (10Gbps, 7.5W)

2 × USB-A 3.1 (10Gbps, 7.5W)

2 × USB-A 2.0

1 × 3.5mm audio/mic combo jack

BODY MATERIAL

Aluminium / plastic

Recommended Setup

For Thunderbolt or USB-C monitors, use Thunderbolt cables (USB-C to USB-C), not included.

For HDMI monitors, use a USB-C to HDMI cable, not included.

For an 8K display, connect via DisplayPort 2.1 using a DP 2.1-rated cable.

M.2 NVMe PCIe Gen4x4 drive sold separately.

On macOS, go to Apple menu > System Settings > Privacy & Security, scroll to "Allow accessories to connect" and set it to Always.

Size & Weight

Size

Length: 8.78 in (223 mm)
Width: 3.82 in (97 mm)
Height: 0.96 in (24.5 mm)

Weight

0.81 lbs (367 g)

POWER

Power

1 × DC power in (20V/9A, 180W max) 1 × Power button Universal Power Adapter, 180W

Warranty

Warranty

1-YearLimited Warranty

What's in the Box

ITEMS

1 × Brydge Stone Pro TB5
1 × Universal Power Adapter (180W)
1 × Thunderbolt™ 5 cable
1 × User manual

Laptop not included. External display cables and M.2 SSD not included.

Frequently Asked Questions

Didn’t find the answer you were looking for?

Our support team is here to help. We’ll be happy to assist with any additional questions.

Please Email Us At:
Support@Uintaproducts.Com

The Stone Pro TB5 works with Thunderbolt 5 and Thunderbolt 4 laptops running Windows 10 & 11, macOS, or ChromeOS. [NEEDS BRYDGE INPUT: confirm whether TB5 speeds require a TB5 host laptop specifically, the way the ProDock Trio requires a TB5 MacBook for full performance.]

The Stone Pro TB5 drives up to three 4K displays at 144Hz, or two 8K displays at 60Hz, over DisplayPort 2.1 and dual Thunderbolt 5. Bandwidth runs at 80Gbps and boosts to 120Gbps when your display demands it. Your maximum display count also depends on your laptop. Apple Silicon MacBook Air and base M-series MacBook Pro models support fewer external displays than the dock can drive, so check your machine's specification if you're planning a three-screen setup.

Up to 180W of total power delivery, enough to charge a laptop and connected peripherals from a single cable.

No. The  Brydge Stone Pro TB5 | Thunderbolt 5 Docking Station is plug and play on Windows, macOS, and ChromeOS. Keep your operating system up to date for best performance.

1 × Brydge Stone Pro TB5
1 × Universal Power Adapter (180W)
1 × Thunderbolt™ 5 cable
1 × User manual

Laptop not included. External display cables and M.2 SSD not included.
